Aluminium movable lifting jib crane LEVO

LEVO aluminium jib crane description

The LEVO aluminium jib crane is a movable, high-performance and safe lifting solution. It contributes to improve of your teams’ responsivity. Its aluminium structure ensures to be portable in the most effective way and facilitates work on sites that are difficult to reach. One operator can thus safely assemble the 3 elements that make up the LEVO jib crane.

You benefit of 8 reach/height configurations in standard equipment. It is the ideal jib crane for lifting loads (unvalable for lifting persons according to french guidance) in sewage treatment plants or by the sea shore, and in general wherever a standard jib-crane cannot be used.

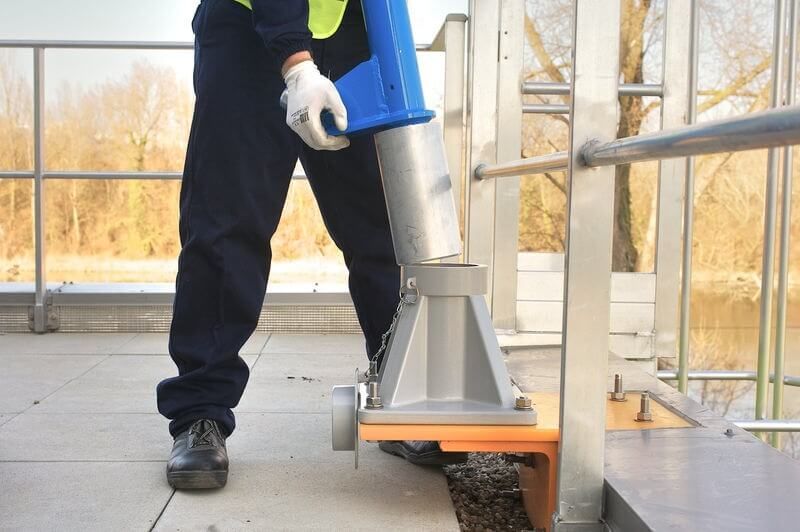

Choose and position the optional bases (floor, wall or sealable) and get the best of lightness in a unique removable jib crane for many configurations.

The advantages of the aluminium jib crane

Like the aluminium gantry crane and tripod, the LEVO aluminium jib crane has become an essential tool for technicians regularly travelling for one-off and delicate maintenance operations.

• No more damage and theft of your equipment - the jib crane can be stored once used
• No more visual pollution on sites with yellow jib cranes
• Equipped with a standard manual hoist, aluminium hoist or stainless steel hoist or electric single-phase hoist or air hoist.

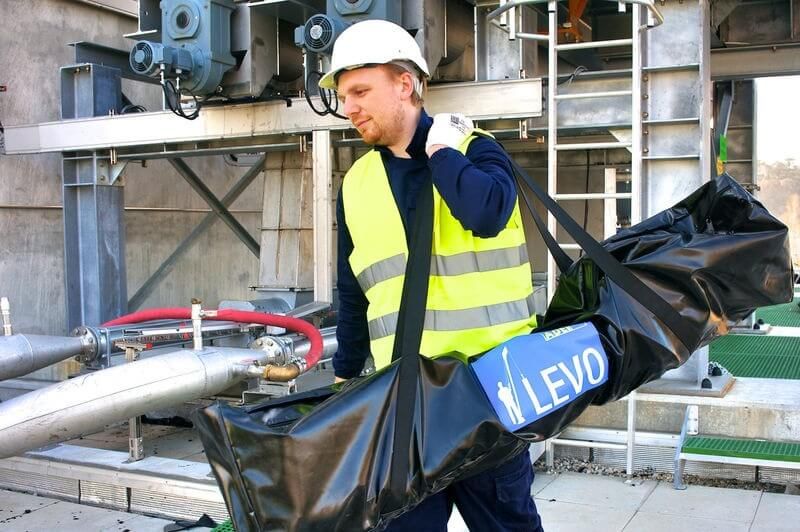

Carrying mobile aluminium jib crane

The provided carrying bag gives your staff an ideal tool for on-site quick and responsive operations. Al the components of the LEVO 300 and LEVO 500 (without winch) are packaged in a same robust carrying bag. The winch equipped LEVO 300T and LEVO 500T models components are dispatched in less than 24 kg 2 bags. One single person can carry the jib crane, assemble it and place it on the plate in order to procced in a safety lifting operation.

Safety

It is under the user's responsibility to ensure the correct anchoring and quality of the base support before using the jib crane.

Standard equipment – hoist version (in option)

• Several heights available (2 extensions provided)
• Jib arm in 3 elements / quick assembly within 2 min.
• Overall weight = 24 kg
• 1 carrying bag provided
• Swivel mounted on ball bearing
• Powder coating Galvanised steel anti-rotation wire rope
• 2 stainless steel failover shackle for spreader beam or accessory

Standard equipment – winch version (in option)

• Adjustable span
• Jib arm in 4 elements / quick assembly
• Overall weight = 2 bags 24 kg each
• 2 carrying bags provided
• Swivel mounted on ball bearing
• Powder coating on anodized surface
• Stainless steel pulley
• Galvanised steel anti-rotation wire rope
• 2 stainless steel failover shackle for spreader beam or accessory
